Identify Shifted Crop Issue in JPEG2000

• bit_rot_detection
• solution

Title	Identify Shifted Crop Issue in JPEG2000
Detailed description	A detailed description of the Solution. Feel free to include links to further information (eg. OPF blog posts!). Note that a Solution is a specific digital preservation application of a software tool or tools. It might for example be a scripted tool, or a myExperiment workflow Due to the ramp up cost of working with j2 files, quite a few things were tried and then alternatives looked at. (jj2000, and an applet to present j2 in a web browser) (modifying j2structCheck.py for reading j2s) (using imagemagick to auto-crop or image process, and convert between formats) To avoid time constraints, a sample set of pngs was generated. (Open the j2 in irfanView, crop to a left hand band - export to png, crop the png to a 256x512 sample section) === 1) Sample file set 1a) 3 known bad files (png 256x512) 1b) 3 assumed good files, cropped on a good section (png 256x512) === 2) Primary ideas 2a) run a vertical diff (edge detection), and examine the output for potential for thresholding 2b) do a vertical band side by side comparison, and look for anomalies in the output 2c) is any horizonal averaging helpful 2d) taking a vertical crop is probably the best way the optimise the detection algorithm, and the crop could be further divided which gives quicker read-time, scan-time, and also makes it easier to isolate the part of the image affected. === 3) Fiji imageJ 3a) this is surprisingly quick to get up and running. 3b) unfortunately there is no obvious support for the algorithms proposed (this would be a simple matter of programming)
Solution Champion	Who owns the Solution? Include an email address if possible Derek Sergeant
Corresponding Issue(s)	A bulletted list of links to Issues to which this provides a Solution Shifted Crop Corruption
Tool/code link	A link to code on Git hub or a corresponding myExperiment if applicable
Tool Registry Link	If possible provide a link to information about any third party tools used. Ideally these should point to entries in the OPF Tool Registry
Evaluation	Dev: Potentially useful techniques to identify the bad images using image processing techniques. Dev: Chopping image down to edges may be useful optimisation. Needs further investigation.

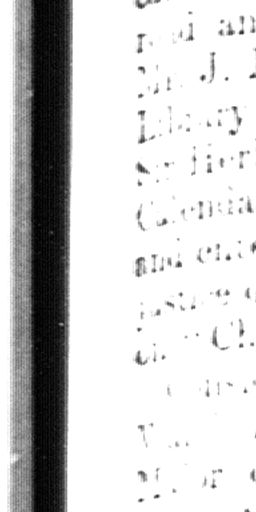

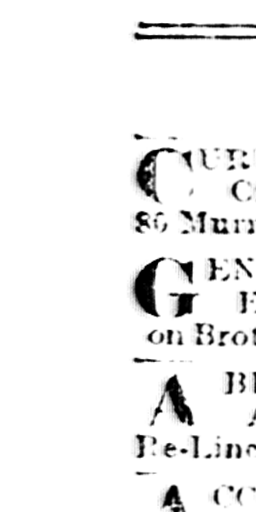

The three assumed good png images: DUCR-1886-04-03-0001_256x512.png  YOHD-1881-10-10-0005_256x512.png  MOPT-1897-10-07-0003_256x512.png

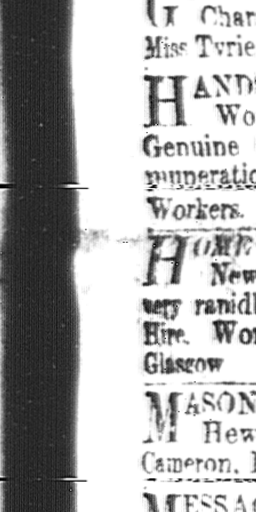

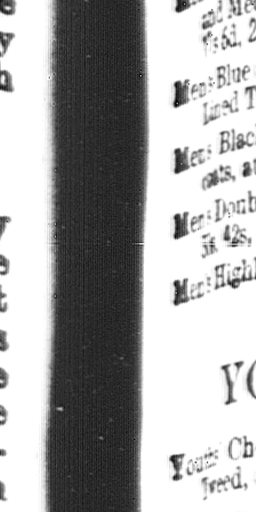

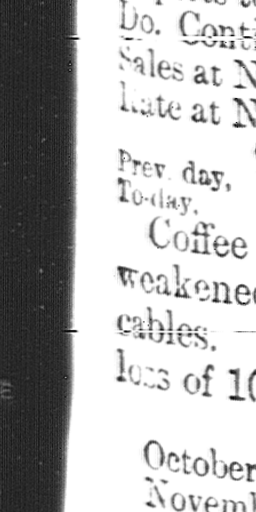

The three known bad png images: DUCR-1896-10-31-0001_256x512.png  DUCR-1896-10-31-0007_256x512.png  DUCR-1896-10-31-0003_256x512.png

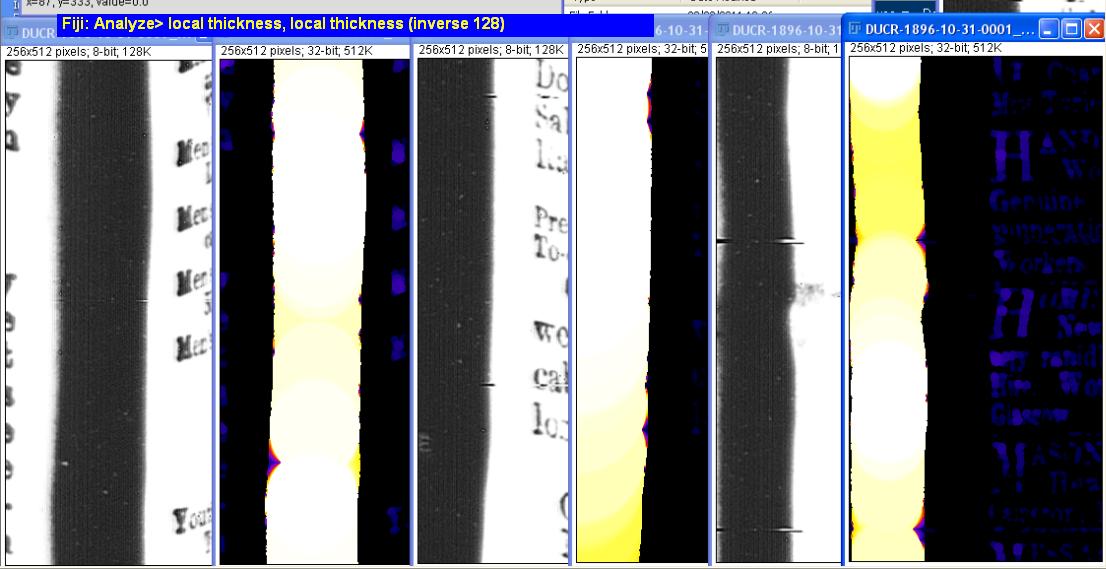

Fiji (imageJ) using local thickness from Analyze:

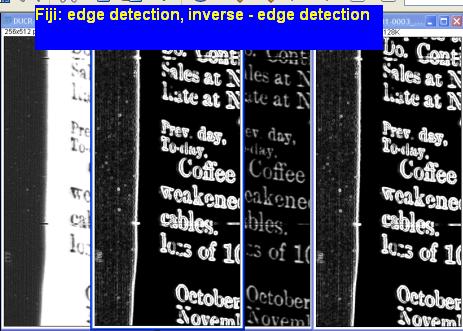

Fiji (imageJ) using Edge Detection:

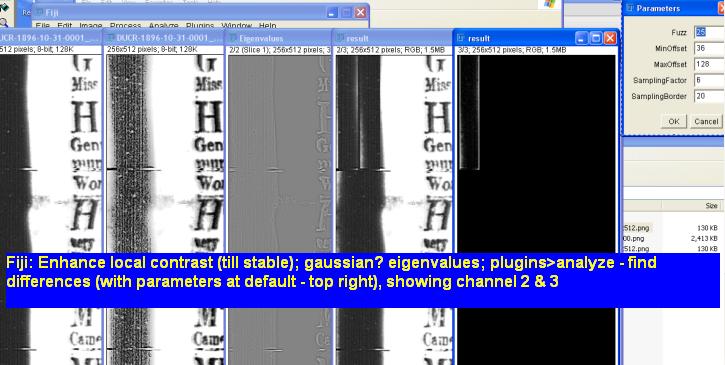

Fiji: trying out a variety of other things - eigen values look promising (as does the "find differences" plugin)
