Precision of alignment evaluation

Created by Pavel Smrz on Jul 28, 2014 · last edited by Pavel Smrz · on Aug 01, 2014 (view history) · 6 versions

Evaluator(s)

Ondrej Klima (BUT)

Evaluation points

Assessment of measurable points

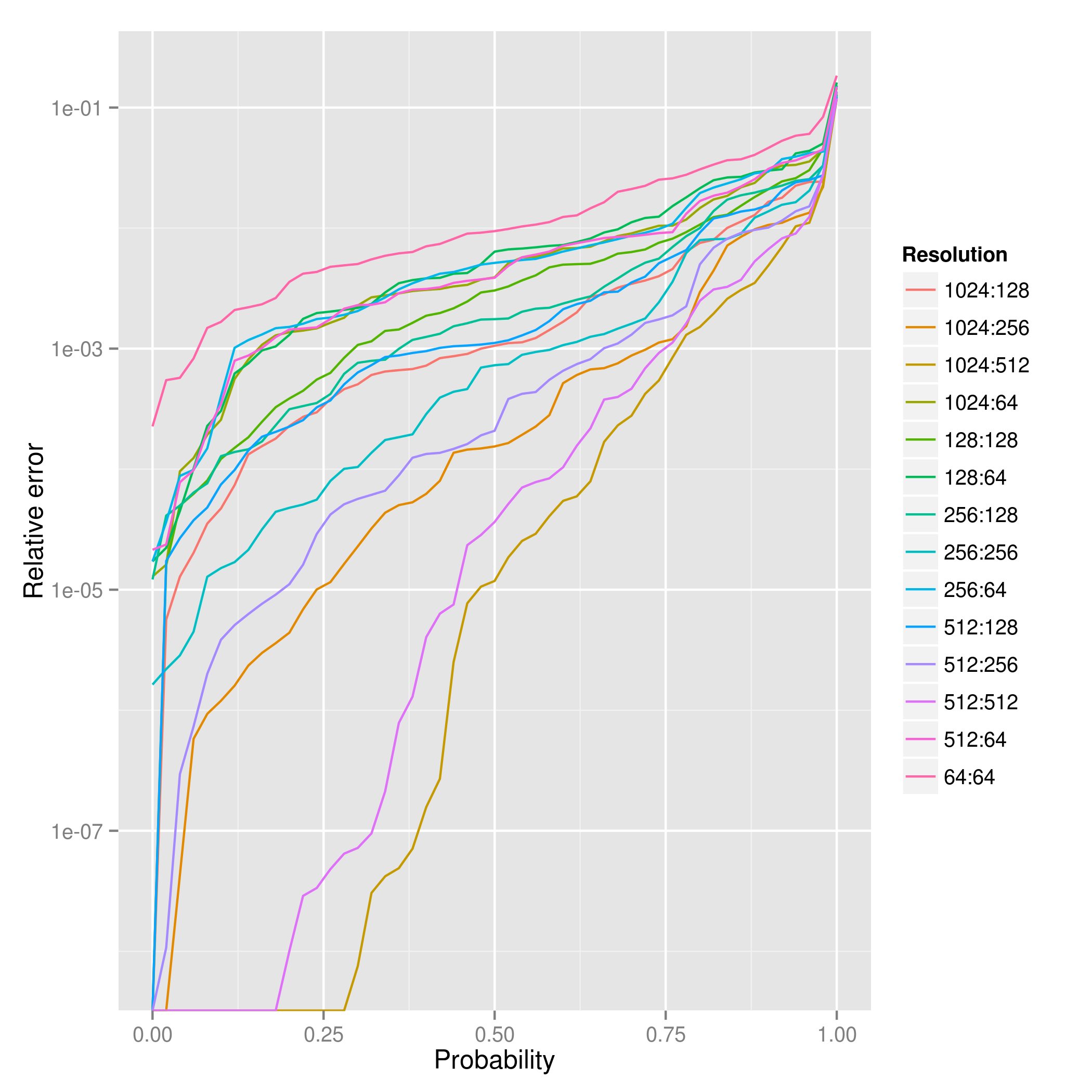

Dependency of relative error on both input and output resolution from July 7 - July 25, 2014

Metric	Description	resolution 64:64 points	128:64 points	256:64	512:64 points	1024:64 points	128:128 points	256:128 points
median relative error	Alignment relative error of median measurement	0.009438515	0.00638008	0.0051446	0.00387144	0.00390434	0.00303662	0.00175625
reliable and stable assessment	Manual assessment on if the experiment performed reliable and stable.	true	true	true	true	true	true	true

Dependency of memory consumption on output resolution from July 7 - July 25, 2014

Metric	Description	resolution 512:128 points	1024:128 points	256:256 points	512:256 points	1024:256 points	512:512 points	1024:512
median relative error	Alignment relative error of median measurement	0.001114905	0.00105649	0.00072851	0.000208288	0.000154354	3.64948e-05	1.182685e-05
reliable and stable assessment	Manual assessment on if the experiment performed reliable and stable.	true	true	true	true	true	true	true
